Honing Tool (Portable Honing Tools used in Manual Lathes)



Inquiry Form

This honing tool is a manually operated tool that consists of the honing head, stone holder, extension bar and adapter. With 5 different models, this manual honing tool has a wide processing range. It can be matched with varied machines, including a handgun drill, radial drilling machine and lathes. It can also provide a great honing performance, lower costs in the honing equipment. For more information about this tool, please feel free to contact us.

Technical Data
Work piece Diameter Honing Head Model
31.8-47.8 SNJ-10
43.5-51.5 SN-75
50.1-66 JN-95
64-178 AN-112
64-310 ANR-275

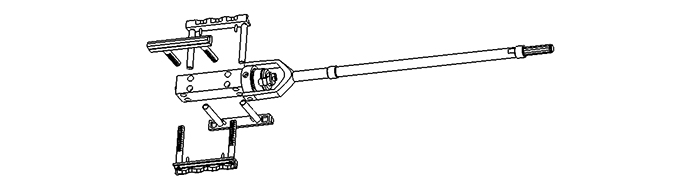

Structure

Notes
1. If equipped with several different stone holders, this honing stone has a wider honing range. The stone only needs to be replaced when necessary.
2. There are several groups of extension bars available for this tool that are each designed to process holes at a certain length.
3. The specially designed adapter can match handgun drilled with the same specifications. Customized adapters are also available. This honing tool can also match the radial drilling machine and other lathes.

AN-112
Work piece diameter (mm) Honing head model Model of oilstone, guide shoe and holder Extension bar model Adapter model
64-98 AN-112 G25 AN-241 with length of 305mm AN-242 with length of 610mm AN-244 with length of 1220mm Diameter∮16 mm Length of AN-26A is 79.5mm. Side length of hexagon is 12.7 mm.
69-98 AN-112 M27
89-140 AN-112 N37
102-154 AN-112 W47
112-178 AN-112 Y57

Notes
1. To hone work pieces of diameter ranging from 64-178mm, use several sets of holders together. Please repair the damaged holders on time.
2. The extension bars are for long work pieces in different lengths.
3. The normal adapters can be connected with the handgun drill. The customized adapters can be used in the radial drilling machine and lathes. Please send us more information, so that we can recommend an appropriate model.

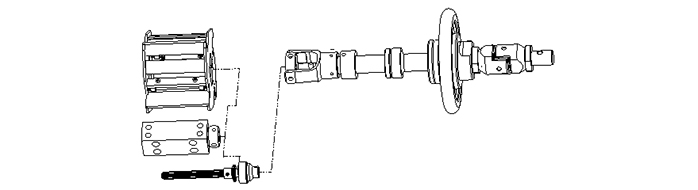

ANR-275
Work piece diameter (mm) Handle adapter 50.8 Honing head Holders Extension bar model Adapter Notes
64-98 SDJT50.8 MPS-H70 HNG25 01SE-50.8-150 01SE-50.8-200 01SE-50.8-300 01SE-50.8-400 01SE-50.8-500 The adapter is used in the machine with honing tools. If you want to buy our adapter, please give us more information, so that we can recommend an appropriate model. no
87-110 MPS-M2085 no
110-150 MPS-M2110 no
150-190 KMPSH70-150
190-250 KMPSH70-190
250-310 KMPSH70-250

Notes
1. To hone work pieces of diameter ranging from 64-310 mm, use several sets of holders together. Please repair the damaged holders on time.
2. The extension bars are for long work pieces in different lengths.
3. The customized adapters can be used in the radial drilling machine. The adapters are for conical shank of Mosh No.3, No. 4, No. 5 …. Or they can be used with other vertical machines. Please send us more information, so that we can recommend an appropriate model.
