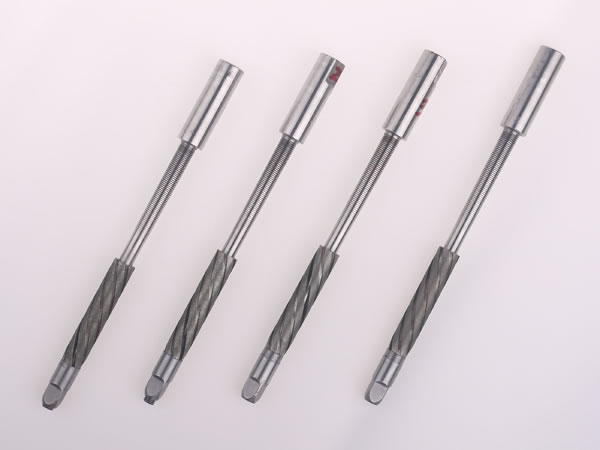

Honing Tool (Single-Pass Tool with Diamond Plated)



Inquiry Form

As a professional manufacturer of honing machines, Honing has provided various types of honing machines and tools to their customers. Supported by a strong R&D and manufacturing team, we can provide excellent honing solutions and specially designed honing tools. This particular honing tool has an abrasive sleeve and is among some of the best honing tools for mass production of high precision parts, as it is made from imported abrasive materials. It has a higher working efficiency, honing precision and a longer service life. The abrasive sleeve can be extended according to setting needs.

The single stroke tool is limited in its applications due to the material and volume of work pieces. The honing range should not surpass the adjustment range of the diamond made abrasive sleeve. This honing tool with an abrasive sleeve is suited especially for small holes. It is commonly used to hone cast iron and steel parts. Visit the page or contact us directly for more information.

Technical Data of Single Stroke Tool
Model Diameter (d1) Abrasive Sleeve Code D3/D5/D7/D8/D0(XX) Length Of Abrasive Sleeve (L) Select the abrasive sleeve according the length of work piece
Length of abrasive length of work piece
4-HPH-d1-L ￠9.5-9.9 4-HPH-d1-XX-L 65/76/90 65 Work piece < 28
5-HPH-d1-L ￠9.9-12 5-HPH-d1-XX-L 65/76/90 76 25< work piece < 35
6-HPH-d1-L ￠11.9-13.5 6-HPH-d1-XX-L 65/76/90/101 90 33 < work piece < 45
7-HPH-d1-L ￠13.4-17 7-HPH-d1-XX-L 65/76/90/101 101 43< work piece < 56
8-HPH-d1-L ￠16.9-20 8-HPH-d1-XX-L 65/76/90/101/127 127 55 < work piece < 76
9-HPH-d1-L ￠21.9-24 9-HPH-d1-XX-L 65/76/90/101/127
Components

1. Lining      2. Mandrel      3. Abrasive Sleeve      4. Gaskets      5. Screw
