Honing Tool (Honing Tools for Honing the Small Hole)

The single-stone honing tool is designed to process inner holes and improve the surface finishing on their internal walls. We have developed several models according to hole dimensions. Each is comprised of mandrel, adapter, wedge, stone retainer, truing sleeve, alignment sleeve and stone. All of these parts are well assembled and driven by a lathe, and each cooperates with each other to process holes as precisely as possible.

The honing tool is applicable to small holes (minimum diameter of 2.54 mm). Based on our R&D and manufacturing capacity, we can provide customized honing tools like this that meet customer requirements. Need more information? Please feel free to contact us and learn more about this honing product.

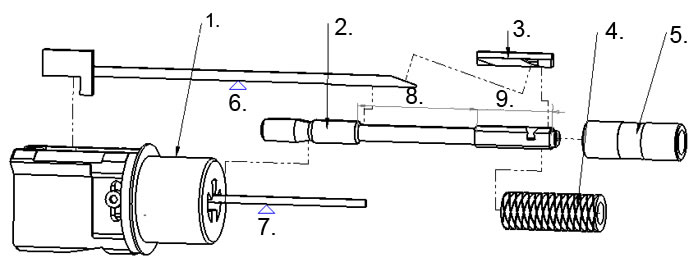

Components

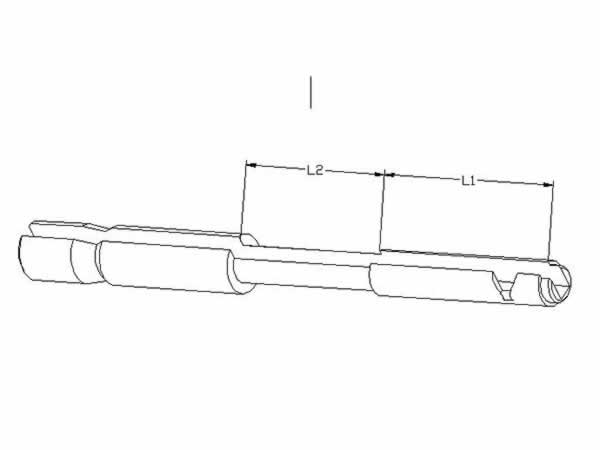

Types: Standard Single stone tools

Typical word: K,BL,JK,L
Standard mandrels for open holes . they are for different diameters and lengths .
Diameters range is 2.54-18.90mm.

K : standard mandrel
BL: stone is longer than K mandrel
JK : shank is longer than K mandrel
L : shank is longer than BL mandrel
SAMPLE : K3-100CH

Typical word : AK, JAK,BAL,AL,ATK,
Standard mandrels for open holes . they are for different diameters and lengths .
Diameters range is 18.90-36 mm.
SAMPLE : AK20-744AH
SAMPLE : AK20-744UACH, the mandrel has guilds .

Typical word : Y,AAY,
Standard mandrels for open holes with key slots . they are for different diameters and lengths .
Diameters range is 6.22-34.93 mm.
SAMPLE : Y8-245BH

Typical word : M
Standard mandrels for blind holes . they are for different diameters and lengths .
Diameters range is 4.7-18.90 mm.
SAMPLE : MK6-01AH

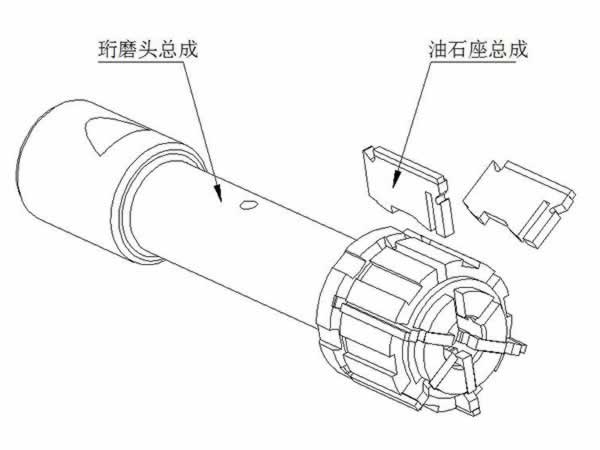

Standard multi-stone mandrels

Typical word : D-Y-
Standard multi-stone mandrels for open holes with key slots . they are for different diameters and lengths .
Diameters range is 24-42 mm.
SAMPLE : D4Y24-44

Typical word : D-
Standard multi-stone mandrels for open holes . they are for different diameters and lengths .
Diameters range is 19.8-52.27 mm.
SAMPLE : D4K8-20

Typical word : MD
Standard multi-stone mandrels for blind holes . they are for different diameters and lengths .
Diameters range is 20.6-35.4 mm.
SAMPLE : MD4-2K8-20.65
