Honing Tool (Honing Tool for Keyway Hole)

Apart from single stroke honing tools, manual honing tools, vertical honing tools and single-stone honing tools, we provide customers with varied standard multi-stone honing tools to process large and middle sized holes. Equipped with multi-stones, this honing tool has a high honing efficiency and improves the roundness of holes. If matched with a proper stone, it can provide an excellent honing performance.

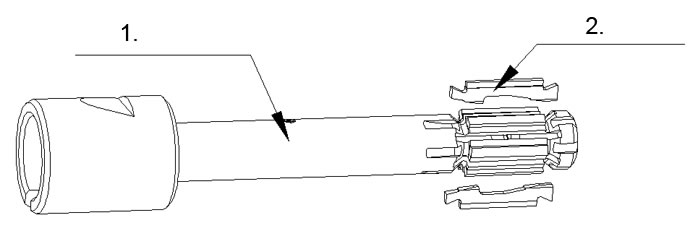

Components

1. Honing Head Assembly      2. Stone Holder Assembly

Selection Reference
Table 1 (stone length≈35mm, suitable for work piece < 45mm in length)
Table 2 (stone length≈60mm, suitable for work piece 40mm to 70mm in length)

Table 3(stone length≈ 85, suitable for work piece 60 to 100mm in length)
Table 4(stone length≈114mm, suitable for work piece 90 to 155mm in length)
Table 5(stone length≈160mm, suitable for work piece 150 to 240mm in length)
Table 6(stone length≈210mm, suitable for work piece 200 to 350mm in length)

Notes
1. to the material, hole diameter and length of the work piece, customers can select suitable honing tools with the help of the above reference tables.
2. We can provide non-standard honing tools depending on customer requirements.
3. Equipped with specially designed adaptors, the honing tool can match honing machines provided by other manufacturers, allowing for a wider range of applications.
